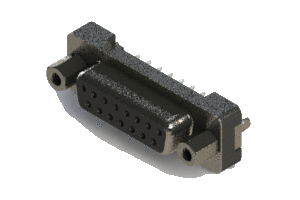

Vertical Plastic Body D-Sub Connector, 628-015-220-017

Manufacturer	EDAC Inc.
Description	Series 628 vertical plastic bodied D-Sub receptacle connector with 15 pin type contacts that have gold flash plating. The shell is Nickel plated.The body is low profile plastic. The flange is mounted with #4-40 UNC threaded standoffs and has boardlocks.
Part Number	628-015-220-017
Series	628 (Plastic)
Positions	15
Gender	Receptacle (SOCKET)

Color	Black
Insulator Style	Standard Profile
Contact Plating	Gold Flash Plating
Contact Code	.105" (2.67mm) to .160" (4.06mm) P.C. Tail
Flange Mounting Options	#4-40 Threaded Standoff with Boardlocks
Shell Plating	Nickel Plated Shell
