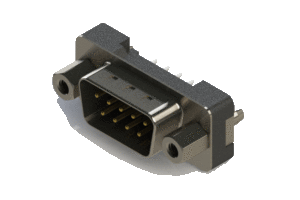

Vertical Plastic Body D-Sub Connector, 627-009-220-017

Manufacturer	EDAC Inc.
Description	Series 627 vertical plastic bodied D-Sub plug connector with 9 pin type contacts that have gold flash plating. The shell is Nickel plated.The body is low profile plastic. The flange is mounted with #4-40 UNC threaded standoffs and has boardlocks.
Part Number	627-009-220-017
Series	627 (Plastic)
Positions	9
Gender	Plug (PIN)

Color	Black
Insulator Style	Standard Profile
Contact Plating	Gold Flash Plating
Contact Code	.105" (2.67mm) to .160" (4.06mm) P.C. Tail
Flange Mounting Options	#4-40 Threaded Standoff with Boardlocks
Shell Plating	Nickel Plated Shell

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Insulator Style	Contact Plating	Contact Code	Flange Mounting Options	Shell Plating
1	1	627-009-220-017	627 (Plastic)	9	Plug (PIN)	Black	Standard Profile	Gold Flash Plating	.105" (2.67mm) to .160" (4.06mm) P.C. Tail	#4-40 Threaded Standoff with Boardlocks	Nickel Plated Shell

Documentation

Datasheet
