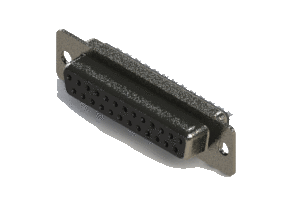

Vertical Metal Body D-Sub Connector, 628-025-222-041

Manufacturer	EDAC Inc.
Description	Series 628 vertical metal shell D-Sub receptacle connector with 25 pin type contacts that have gold flash plating. The shell is Nickel plated. The flange is mounted with Ø.120" (Ø3.05mm) through holes.
Part Number	628-025-222-041
Series	628 (Metal)
Positions	25
Gender	Receptacle (SOCKET)

Color	Black
Insulator Style	Standard Profile - Standard Temp
Contact Plating	Gold Flash Plating
Contact Code	Solder Cup (Standard Profile Only)
Flange Mounting Options	.120" (3.05mm) Dia. Through Hole
Shell Plating	Nickel Plated Shell

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Insulator Style	Contact Plating	Contact Code	Flange Mounting Options	Shell Plating
1	1	628-025-222-041	628 (Metal)	25	Receptacle (SOCKET)	Black	Standard Profile - Standard Temp	Gold Flash Plating	Solder Cup (Standard Profile Only)	.120" (3.05mm) Dia. Through Hole	Nickel Plated Shell

Documentation

Datasheet
