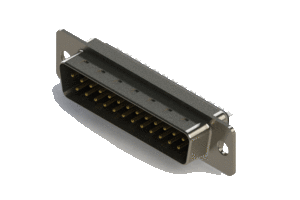

Vertical Metal Body D-Sub Connector, 627-025-222-041

Manufacturer	EDAC Inc.
Description	Series 627 vertical metal shell D-Sub plug connector with 25 pin type contacts that have gold flash plating. The shell is Nickel plated. The insulator is standard profile standard plastic. The flange is mounted with Ø.120" (Ø3.05mm) through holes.
Part Number	627-025-222-041
Series	627 (Metal)
Positions	25
Gender	Plug (PIN)

Color	Black
Insulator Style	Standard Profile - Standard Temp
Contact Plating	Gold Flash Plating
Contact Code	Solder Cup (Standard Profile Only)
Flange Mounting Options	.120" (3.05mm) Dia. Through Hole
Shell Plating	Nickel Plated Shell

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Insulator Style	Contact Plating	Contact Code	Flange Mounting Options	Shell Plating
1	1	627-025-222-041	627 (Metal)	25	Plug (PIN)	Black	Standard Profile - Standard Temp	Gold Flash Plating	Solder Cup (Standard Profile Only)	.120" (3.05mm) Dia. Through Hole	Nickel Plated Shell
