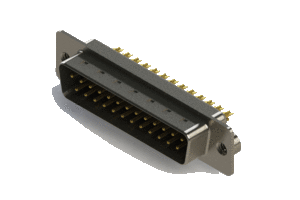

Vertical Machined D-Sub Connectors, 627-M25-222-BN2

Manufacturer	EDAC Inc.
Description	The insulator is black. The shell is nickel plated. It is mounted via 4-40 UNC threaded inserts.
Part Number	627-M25-222-BN2
Series	627M
Positions	25
Gender	Plug (PIN)

Contact Plating	Gold Flash Plating
Contact Code	Solder Cup Tail
Shell Plating	Nickel
Insulator Color	Black
Mounting & Grounding Options	#4-40 UNC, 2.70mm Threaded Insert

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	627-M25-222-BN2	627M	25	Plug (PIN)	Gold Flash Plating	Solder Cup Tail	Nickel	Black	#4-40 UNC, 2.70mm Threaded Insert

Documentation

Datasheet
