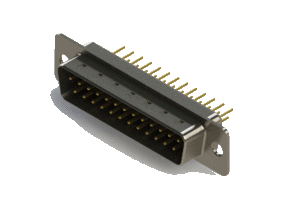

Vertical Machined D-Sub Connectors, 627-M25-220-BN1

Manufacturer	EDAC Inc.
Description	The insulator is black. The shell is nickel plated. It is mounted via Ø.120" (Ø3.05mm) through holes.
Part Number	627-M25-220-BN1
Series	627M
Positions	25
Gender	Plug (PIN)

Contact Plating	Gold Flash Plating
Contact Code	.224" (5.70mm) P.C. Tail (Only for Plug)
Shell Plating	Nickel
Insulator Color	Black
Mounting & Grounding Options	.120" (3.05mm) Through Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	627-M25-220-BN1	627M	25	Plug (PIN)	Gold Flash Plating	.224" (5.70mm) P.C. Tail (Only for Plug)	Nickel	Black	.120" (3.05mm) Through Hole

Documentation

Datasheet
