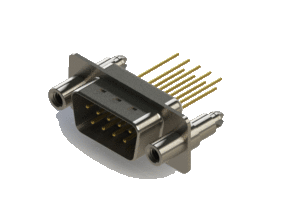

Vertical Machined D-Sub Connectors, 627-M09-223-WN6

Manufacturer	EDAC Inc.
Description	The insulator is white. The shell is nickel plated. It is mounted via 4-40 UNC threaded board spacer with boardlocks and mating side standoffs.
Part Number	627-M09-223-WN6
Series	627M
Positions	9
Gender	Plug (PIN)

Contact Plating	Gold Flash Plating
Contact Code	.495" (12.57mm) P.C. Tail
Shell Plating	Nickel
Insulator Color	White
Mounting & Grounding Options	#4-40 UNC Threaded Standoff with Boardspacer & Boardlocks (P.C. Tail Only)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	627-M09-223-WN6	627M	9	Plug (PIN)	Gold Flash Plating	.495" (12.57mm) P.C. Tail	Nickel	White	#4-40 UNC Threaded Standoff with Boardspacer & Boardlocks (P.C. Tail Only)

Documentation

Datasheet
