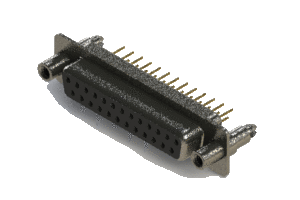

Vertical Machined D-Sub Connector, 628-M25-221-BN6

Manufacturer	EDAC Inc.
Description	The insulator is black. The shell is nickel plated. It is mounted via 4-40 UNC threaded board spacer with boardlocks and mating side standoffs.
Part Number	628-M25-221-BN6
Series	628M
Positions	25
Gender	Receptacle (SOCKET)

Contact Plating	Gold Flash Plating
Contact Code	.232" (5.90mm) P.C. Tail (Only for Receptacle)
Shell Plating	Nickel
Insulator Color	Black
Mounting & Grounding Options	#4-40 UNC Threaded Standoff with Boardspacer & Boardlocks (P.C. Tail Only)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	628-M25-221-BN6	628M	25	Receptacle (SOCKET)	Gold Flash Plating	.232" (5.90mm) P.C. Tail (Only for Receptacle)	Nickel	Black	#4-40 UNC Threaded Standoff with Boardspacer & Boardlocks (P.C. Tail Only)

Documentation

Datasheet
