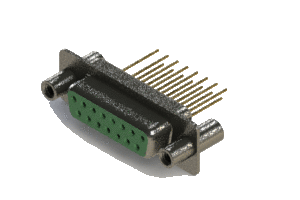

Vertical Machined D-Sub Connector, 628-M15-223-GN4

Manufacturer	EDAC Inc.
Description	The insulator is green. The shell is nickel plated. It is mounted via 4-40 UNC threaded board spacer and mating side standoffs.
Part Number	628-M15-223-GN4
Series	628M
Positions	15
Gender	Receptacle (SOCKET)

Contact Plating	Gold Flash Plating
Contact Code	.495" (12.57mm) P.C. Tail
Shell Plating	Nickel
Insulator Color	Green
Mounting & Grounding Options	#4-40 UNC Threaded Standoff with Threaded Boardspacer (P.C. Tail Only)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	628-M15-223-GN4	628M	15	Receptacle (SOCKET)	Gold Flash Plating	.495" (12.57mm) P.C. Tail	Nickel	Green	#4-40 UNC Threaded Standoff with Threaded Boardspacer (P.C. Tail Only)
