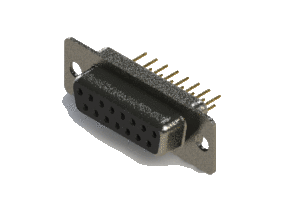

Vertical Machined D-Sub Connector, 628-M15-221-BN1

Manufacturer	EDAC Inc.
Description	The insulator is black. The shell is nickel plated. It is mounted via Ø.120" (Ø3.05mm) through holes.
Part Number	628-M15-221-BN1
Series	628M
Positions	15
Gender	Receptacle (SOCKET)

Contact Plating	Gold Flash Plating
Contact Code	.232" (5.90mm) P.C. Tail (Only for Receptacle)
Shell Plating	Nickel
Insulator Color	Black
Mounting & Grounding Options	.120" (3.05mm) Through Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Plating	Contact Code	Shell Plating	Insulator Color	Mounting & Grounding Options
1	1	628-M15-221-BN1	628M	15	Receptacle (SOCKET)	Gold Flash Plating	.232" (5.90mm) P.C. Tail (Only for Receptacle)	Nickel	Black	.120" (3.05mm) Through Hole
