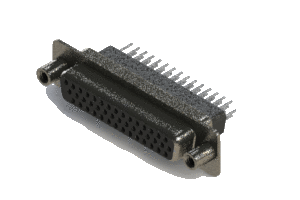

Vertical High Density D-Sub Connector, 638-044-231-078

Manufacturer	EDAC Inc.
Description	Series 638 vertical D-Sub receptacle connector, the shell is Nickel plated. The insulator is high profile high temperature plastic. The flange is mounted with #4-40 UNC threaded mating side clinch nuts .236" (6.00mm) tall.
Part Number	638-044-231-078
Series	638
Positions	44
Gender	Receptacle (SOCKET)

Insulator Style	High Profile - High Temp (N/A for Crimp & Load Termination)
Contact Description	PCB Tail High Profile Insulator
Flange Mounting Options	#4-40 Threaded Clinch Nut (Mating Side) .236" (6.00mm)
Shell Plating	Nickel
Gold Plating	Gold Flash Plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Insulator Style	Contact Description	Flange Mounting Options	Shell Plating	Gold Plating
1	1	638-044-231-078	638	44	Receptacle (SOCKET)	High Profile - High Temp (N/A for Crimp & Load Termination)	PCB Tail High Profile Insulator	#4-40 Threaded Clinch Nut (Mating Side) .236" (6.00mm)	Nickel	Gold Flash Plating

Documentation

Datasheet
