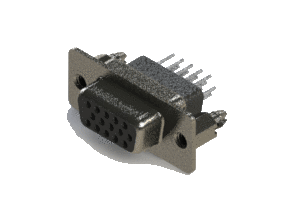

Vertical High Density D-Sub Connector, 638-015-231-056

Manufacturer	EDAC Inc.
Description	Series 638 vertical D-Sub receptacle connector, the shell is Nickel plated. The insulator is high profile standard plastic. The flange is mounted with #4-40 UNC threaded inserts and has boardlocks.
Part Number	638-015-231-056
Series	638
Positions	15
Gender	Receptacle (SOCKET)

Insulator Style	High Profile - Standard Temp (N/A for Crimp & Load Termination)
Contact Description	PCB Tail High Profile Insulator
Flange Mounting Options	#4-40 Threaded Hole with Boardlocks (N/A for Crimp & Load Termination)
Shell Plating	Nickel
Gold Plating	Gold Flash Plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Insulator Style	Contact Description	Flange Mounting Options	Shell Plating	Gold Plating
1	1	638-015-231-056	638	15	Receptacle (SOCKET)	High Profile - Standard Temp (N/A for Crimp & Load Termination)	PCB Tail High Profile Insulator	#4-40 Threaded Hole with Boardlocks (N/A for Crimp & Load Termination)	Nickel	Gold Flash Plating

Documentation

Datasheet
