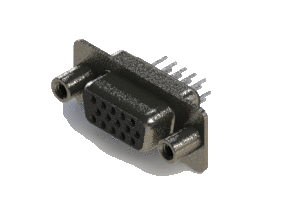

Vertical High Density D-Sub Connector, 638-015-230-048

Manufacturer	EDAC Inc.
Description	Series 638 vertical D-Sub receptacle connector, the shell is Nickel plated. The insulator is standard profile standard plastic. The flange is mounted with #4-40 UNC threaded mating side clinch nuts .236" (6.00mm) tall.
Part Number	638-015-230-048
Series	638
Positions	15
Gender	Receptacle (SOCKET)

Insulator Style	Standard Profile - Standard Temp
Contact Description	PCB Tail Standard Profile Insulator
Flange Mounting Options	#4-40 Threaded Clinch Nut (Mating Side) .236" (6.00mm)
Shell Plating	Nickel
Gold Plating	Gold Flash Plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Insulator Style	Contact Description	Flange Mounting Options	Shell Plating	Gold Plating
1	1	638-015-230-048	638	15	Receptacle (SOCKET)	Standard Profile - Standard Temp	PCB Tail Standard Profile Insulator	#4-40 Threaded Clinch Nut (Mating Side) .236" (6.00mm)	Nickel	Gold Flash Plating

Documentation

Datasheet

Contact the supplier

EDAC Inc.

Established in 1966, Edac became a world leader in the Card Edge and Rack & Panel industry. Many of our legacy designs are still in use today though over the years, we’ve expanded our line to include one of the widest ranges of interconnect solutions in the world.
