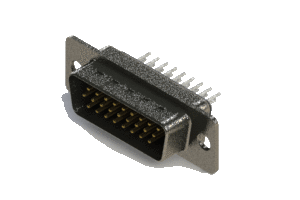

Vertical High Density D-Sub Connector, 637-026-230-061

Manufacturer	EDAC Inc.
Description	Series 637 vertical D-Sub plug connector, the shell is Nickel plated. The insulator is high profile standard plastic. The flange is mounted with Ø.120" (Ø3.05mm) through holes.
Part Number	637-026-230-061
Series	637
Positions	26
Gender	Plug (PIN)

Insulator Style	Standard Profile - High Temp (N/A for Crimp & Load Termination)
Contact Description	PCB Tail Standard Profile Insulator
Flange Mounting Options	.120" (3.05mm) Dia. Through Hole
Shell Plating	Nickel
Gold Plating	Gold Flash Plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Insulator Style	Contact Description	Flange Mounting Options	Shell Plating	Gold Plating
1	1	637-026-230-061	637	26	Plug (PIN)	Standard Profile - High Temp (N/A for Crimp & Load Termination)	PCB Tail Standard Profile Insulator	.120" (3.05mm) Dia. Through Hole	Nickel	Gold Flash Plating

Documentation

Datasheet
