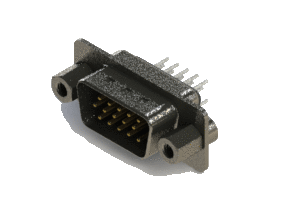

Vertical High Density D-Sub Connector, 637-015-230-043

Manufacturer	EDAC Inc.
Description	Series 637 vertical D-Sub plug connector, the shell is Nickel plated. The insulator is standard profile. The flange is mounted with #4-40 UNC threaded hex standoffs.
Part Number	637-015-230-043
Series	637
Positions	15
Gender	Plug (PIN)

Insulator Style	Standard Profile - Standard Temp
Contact Description	PCB Tail Standard Profile Insulator
Flange Mounting Options	#4-40 Threaded Standoff
Shell Plating	Nickel
Gold Plating	Gold Flash Plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Insulator Style	Contact Description	Flange Mounting Options	Shell Plating	Gold Plating
1	1	637-015-230-043	637	15	Plug (PIN)	Standard Profile - Standard Temp	PCB Tail Standard Profile Insulator	#4-40 Threaded Standoff	Nickel	Gold Flash Plating

Documentation

Datasheet
