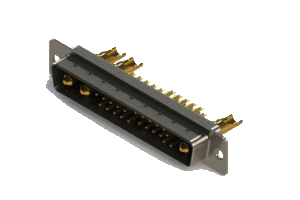

Vertical Combo Dsub, 627-25W3222-3N1

Manufacturer	EDAC Inc.
Description	Series 627 vertical Combo' D-Sub plug connector with contacts in a 25W3 layout that have gold flash plating. The shell is nickel plated and the flange is mounted with Ø.120" (Ø3.05mm) through holes.
Part Number	627-25W3222-3N1
Series	627C
Positions	25
Layout	25W3
Gender	Plug (PIN)
Contact Description	Solder Cup
Current/Impedance Rating	30A

Mounting Option	Through Hole
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Shell Type	Size 37 Contact Shell
No. of Power or Coaxial Contacts	3
No. of Signal Contacts	22
Total Contacts	25
Contact Type	Power and Signal
