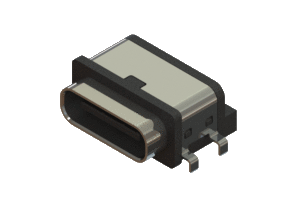

USB Type-C connector, 698A106W282-611

Manufacturer	EDAC Inc.
Description	6 pin USB Type-C water resistact connector. The contacts have Gold flash plating and have SMT tails. It is mounted to the PCB with 4 through hole tabs. The insulator is LCP and is black in colour.
Part Number	698A106W282-611
Material	LCP
Series	698A
Gender	Receptacle
Connector Type	USB Type-C (6 Pin)
Contact Plating	Gold Flash Plating
Contact Description	Mid Mount SMT

Mounting Option	4 Through Hole Grounding Tabs
Connector Option	Short Body
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	5~20N
Withdrawal Force	8~20N
Shell Material	Stainless steel with half bright tin plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	698A106W282-611	LCP	698A	Receptacle	USB Type-C (6 Pin)	Gold Flash Plating	Mid Mount SMT	4 Through Hole Grounding Tabs	Short Body	Black	UL-94V-0 Thermoplastic	Copper Alloy	5~20N	8~20N	Stainless steel with half bright tin plating
