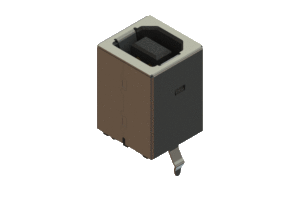

USB Type-B connector, 690Q204-243-221

Manufacturer	EDAC Inc.
Description	USB Type-B connector. The contacts have Gold flash plating and have vertical PCB tails. It is mounted to the PCB with 2 boardlocks and has no tabs on the leading edge. The insulator is PBT and is black in colour.
Part Number	690Q204-243-221
Material	PBT
Series	690Q
Gender	Receptacle
Connector Type	USB 2.0 Type-B
Contact Plating	Gold Flash Plating
Contact Description	Vertical PCB

Mounting Option	2 Metal Board Locks
Connector Option	No Tabs on Leading Edge
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690Q204-243-221	PBT	690Q	Receptacle	USB 2.0 Type-B	Gold Flash Plating	Vertical PCB	2 Metal Board Locks	No Tabs on Leading Edge	Black	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
