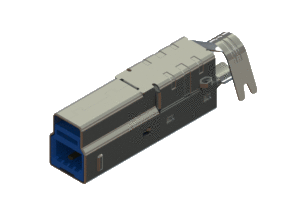

USB Type-B cable end connector, 691F209-690-712

Manufacturer	EDAC Inc.
Description	USB 3.0 Type-B cable end connector. The contacts have Gold plating and have solder cup tails. The shell has no grounding tabs and is 35mm long in 2 pieces with a cable crimp. The insulator is LCP and is blue in colour.
Part Number	691F209-690-712
Material	LCP
Series	691F
Gender	Plug
Connector Type	USB 3.0 Type-B
Contact Plating	30 Microinches of Gold Plating
Contact Description	Cable End Solder Cup

Mounting Option	None
Shell Option	35mm Long 2 Piece Metal Shell with Cable Crimp
Insulator Color	Blue
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Shell Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	691F209-690-712	LCP	691F	Plug	USB 3.0 Type-B	30 Microinches of Gold Plating	Cable End Solder Cup	None	35mm Long 2 Piece Metal Shell with Cable Crimp	Blue	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating

Documentation

Datasheet

Series Ordering Guide
