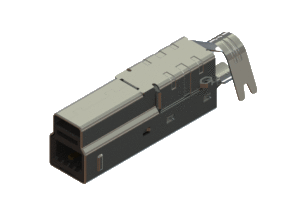

USB Type-B cable end connector, 691F209-290-771

Manufacturer	EDAC Inc.
Description	USB 3.0 Type-B cable end connector. The contacts have Gold flash plating and have solder cup tails. The shell has no grounding tabs and is 35mm long in 2 pieces with a cable crimp. The insulator is PA66 and is black in colour.
Part Number	691F209-290-771
Material	PA66
Series	691F
Gender	Plug
Connector Type	USB 3.0 Type-B
Contact Plating	Gold Flash Plating
Contact Description	Cable End Solder Cup

Mounting Option	None
Shell Option	35mm Long 2 Piece Metal Shell with Cable Crimp
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Shell Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	691F209-290-771	PA66	691F	Plug	USB 3.0 Type-B	Gold Flash Plating	Cable End Solder Cup	None	35mm Long 2 Piece Metal Shell with Cable Crimp	Black	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
