USB Type-A connector, 690J104-267-210

Manufacturer	EDAC Inc.

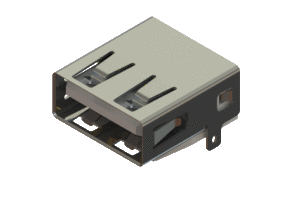

Description	USB Type-A connector. The contacts have Gold flash plating and have right angle SMT tails. It is parallel to the PCB, mounted with plastic posts and 2 through hole tabs and has no tabs on the leading edge. The insulator is LCP and is white in colour.
Part Number	690J104-267-210
Material	LCP
Series	690J
Gender	Receptacle
Connector Type	USB 2.0 Type-A
Contact Plating	Gold Flash Plating
Contact Description	Right Angle SMT

Mounting Option	Plastic Posts & 2 Through Hole Grounding Tabs
Connector Option	No Tabs on Leading Edge
Insulator Color	White/Natural
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690J104-267-210	LCP	690J	Receptacle	USB 2.0 Type-A	Gold Flash Plating	Right Angle SMT	Plastic Posts & 2 Through Hole Grounding Tabs	No Tabs on Leading Edge	White/Natural	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
