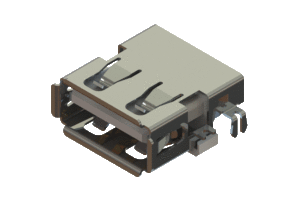

USB Type-A connector, 690G104-259-040

Manufacturer	EDAC Inc.
Description	USB Type-A connector. The contacts have Gold flash plating and have PCB tails. The shell is mid-mounted with 2 tabs and 2 boardlocks and has tabs on the leading edge. The insulator is PA6T and is white in colour.
Part Number	690G104-259-040
Material	PA6T
Series	690G
Gender	Receptacle
Connector Type	USB 2.0 Type-A
Contact Plating	Gold Flash Plating
Contact Description	Mid-mount PCB (Board cut-out required)

Mounting Option	2 Tabs & 2 Boardlocks
Connector Option	Tabs on Leading Edge
Insulator Color	White/Natural
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating
