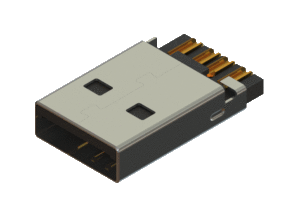

USB Type-A cable end connector, 691C104-290-121

Manufacturer	EDAC Inc.
Description	USB Type-A cable end connector. The contacts have Gold flash plating and have solder cup tails. The shell has no grounding tabs and is plain without a cable crimp. The insulator is PBT and is black in colour.
Part Number	691C104-290-121
Material	PBT
Series	691C
Gender	Plug
Connector Type	USB 2.0 Type-B
Contact Plating	Gold Flash Plating
Contact Description	Solder Cup

Mounting Option	None
Shell Option	Plain Metal Shell
Insulator Color	Black
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Shell Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	691C104-290-121	PBT	691C	Plug	USB 2.0 Type-B	Gold Flash Plating	Solder Cup	None	Plain Metal Shell	Black	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
