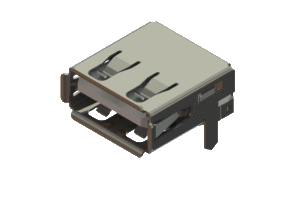

USB Type A connector, 690A104-621-020

Manufacturer	EDAC Inc.
Description	USB Type A connector. The contacts have Gold plating and have right angle PCB tails. The shell is parallel to the PCB with 2 through hole tabs and has tabs on the leading edge. The insulator is PBT and is white in colour.
Part Number	690A104-621-020
Material	PBT
Series	690A
Gender	Receptacle
Connector Type	USB 2.0 Type-A
Contact Plating	30 Microinches of Gold Plating
Contact Description	Right Angle PCB (Parallel to PCB)

Mounting Option	2 Through Hole Grounding Tabs
Connector Option	Tabs on Leading Edge
Insulator Color	White/Natural
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating
