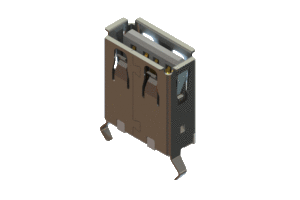

Short body USB Type-A (3A rated) connector, 690E104-243-070

Manufacturer	EDAC Inc.
Description	USB Type-A connector. The contacts have Gold flash plating and have vertical PCB tails. It is mounted with 2 boardlocks and has tabs on the leading edge. The insulator is PA66 and is white in colour.
Part Number	690E104-243-070
Material	PA66
Series	690E
Gender	Receptacle
Connector Type	USB 2.0 Type-A
Contact Plating	Gold Flash Plating
Contact Description	Vertical PCB

Mounting Option	2 Metal Board Locks
Connector Option	Tabs on Leading Edge
Insulator Color	White/Natural
Insulator Material	UL-94V-0 Thermoplastic
Contact Material	Copper Alloy
Insertion Force	35N maximum
Withdrawal Force	10N minimum
Shell Material	Brass with nickel plating

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Gender	Connector Type	Contact Plating	Contact Description	Mounting Option	Connector Option	Insulator Color	Insulator Material	Contact Material	Insertion Force	Withdrawal Force	Shell Material
1	1	690E104-243-070	PA66	690E	Receptacle	USB 2.0 Type-A	Gold Flash Plating	Vertical PCB	2 Metal Board Locks	Tabs on Leading Edge	White/Natural	UL-94V-0 Thermoplastic	Copper Alloy	35N maximum	10N minimum	Brass with nickel plating
