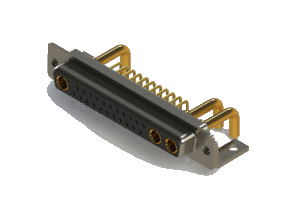

Right-angle Power Combo D-Sub Connector, 630-25W3250-3N4

Manufacturer	EDAC Inc.
Description	Series 630 right angle Combo' D-Sub receptacle connector with contacts in a 25W3 layout that have gold flash plating. The shell is nickel plated and the flange is mounted with #4-40 UNC threaded inserts and brackets with through holes.
Part Number	630-25W3250-3N4
Series	630C
Positions	25
Layout	25W3
Gender	Receptacle (SOCKET)
Contact Description	P.C. Tail
Current/Impedance Rating	30A

Mounting Option	#4-40 UNC Threaded Hole, Mounting Bracket
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Shell Type	Size 37 Contact Shell
No. of Power or Coaxial Contacts	3
No. of Signal Contacts	22
Total Contacts	25
Contact Type	Power and Signal

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Layout	Gender	Contact Description	Current/Impedance Rating	Mounting Option	Contact Plating	Shell Plating	Shell Type	No. of Power or Coaxial Contacts	No. of Signal Contacts	Total Contacts	Contact Type
1	1	630-25W3250-3N4	630C	25	25W3	Receptacle (SOCKET)	P.C. Tail	30A	#4-40 UNC Threaded Hole, Mounting Bracket	Gold Flash Plating	Nickel	Size 37 Contact Shell	3	22	25	Power and Signal
