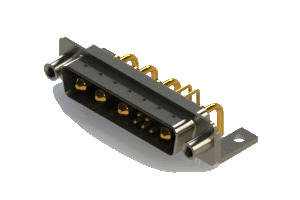

Right-angle Power Combo D-Sub Connector, 629-9W4-240-1N6

Manufacturer	EDAC Inc.
Description	Series 629 right angle Combo' D-Sub plug connector with contacts in a 9W4 layout that have gold flash plating. The shell is nickel plated and the flange is mounted with #4-40 UNC threaded connector side standoffs and brackets with through holes.
Part Number	629-9W4-240-1N6
Series	629C
Positions	9
Layout	9W4
Gender	Plug (PIN)
Contact Description	P.C. Tail
Current/Impedance Rating	10A

Mounting Option	#4-40 UNC Threaded Standoff, Mounting Bracket
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Shell Type	Size 25 Contact Shell
No. of Power or Coaxial Contacts	4
No. of Signal Contacts	5
Total Contacts	9
Contact Type	Power and Signal

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Layout	Gender	Contact Description	Current/Impedance Rating	Mounting Option	Contact Plating	Shell Plating	Shell Type	No. of Power or Coaxial Contacts	No. of Signal Contacts	Total Contacts	Contact Type
1	1	629-9W4-240-1N6	629C	9	9W4	Plug (PIN)	P.C. Tail	10A	#4-40 UNC Threaded Standoff, Mounting Bracket	Gold Flash Plating	Nickel	Size 25 Contact Shell	4	5	9	Power and Signal
