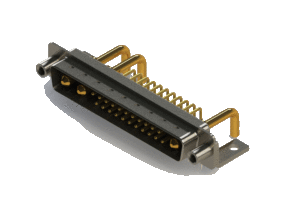

Right-angle Power Combo D-Sub Connector, 629-25W3250-2N6

Manufacturer	EDAC Inc.
Description	Series 629 right angle Combo' D-Sub plug connector with contacts in a 25W3 layout that have gold flash plating. The shell is nickel plated and the flange is mounted with #4-40 UNC threaded connector side standoffs and brackets with through holes.
Part Number	629-25W3250-2N6
Series	629C
Positions	25
Layout	25W3
Gender	Plug (PIN)
Contact Description	P.C. Tail
Current/Impedance Rating	20A

Mounting Option	#4-40 UNC Threaded Standoff, Mounting Bracket
Contact Plating	Gold Flash Plating
Shell Plating	Nickel
Shell Type	Size 37 Contact Shell
No. of Power or Coaxial Contacts	3
No. of Signal Contacts	22
Total Contacts	25
Contact Type	Power and Signal

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Layout	Gender	Contact Description	Current/Impedance Rating	Mounting Option	Contact Plating	Shell Plating	Shell Type	No. of Power or Coaxial Contacts	No. of Signal Contacts	Total Contacts	Contact Type
1	1	629-25W3250-2N6	629C	25	25W3	Plug (PIN)	P.C. Tail	20A	#4-40 UNC Threaded Standoff, Mounting Bracket	Gold Flash Plating	Nickel	Size 37 Contact Shell	3	22	25	Power and Signal
