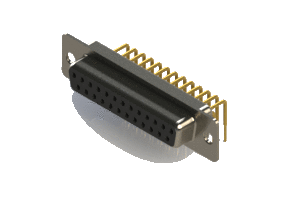

Right Angle D-Sub Connector, 630-M25-240-BN1

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via Ø.120" (Ø3.05mm) through holes.
Part Number	630-M25-240-BN1
Series	630M
Positions	25
Gender	Receptacle (Socket)

Color	Black
Contact Plating	Gold Flash Plating
Contact Code	.370" (9.40mm) Footprint R/A P.C. Tail
Shell Plating	Nickel
Grounding Feature	.120" (3.05mm) Through Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Grounding Feature
1	1	630-M25-240-BN1	630M	25	Receptacle (Socket)	Black	Gold Flash Plating	.370" (9.40mm) Footprint R/A P.C. Tail	Nickel	.120" (3.05mm) Through Hole
