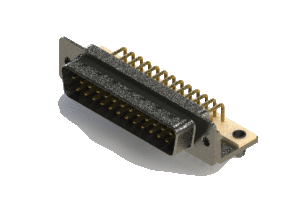

Right Angle D-Sub Connector, 629-M25-240-WN3

Manufacturer	EDAC Inc.
Description	The insulator is white and the shell is nickel plated. It is mounted via 4-40 UNC threaded inserts, has a stabilizing PCB and boardlocks.
Part Number	629-M25-240-WN3
Series	629M
Positions	25
Gender	Plug (Pin)

Color	White
Contact Plating	Gold Flash Plating
Contact Code	.370" (9.40mm) Footprint R/A P.C. Tail
Shell Plating	Nickel
Grounding Feature	#4-40 UNC Insert + Stabilizer PCB + Boardlocks

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Grounding Feature
1	1	629-M25-240-WN3	629M	25	Plug (Pin)	White	Gold Flash Plating	.370" (9.40mm) Footprint R/A P.C. Tail	Nickel	#4-40 UNC Insert + Stabilizer PCB + Boardlocks

Documentation

Datasheet
