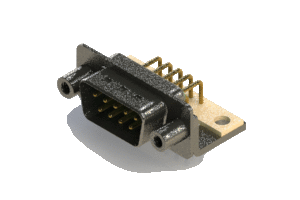

Right Angle D-Sub Connector, 629-M09-240-GN6

Manufacturer	EDAC Inc.
Description	The insulator is green and the shell is nickel plated. It is mounted via 4-40 UNC threaded standoffs, has a stabilizing PCB and Ø.126" (Ø3.20mm) through holes.
Part Number	629-M09-240-GN6
Series	629M
Positions	9
Gender	Plug (Pin)

Color	Green
Contact Plating	Gold Flash Plating
Contact Code	.370" (9.40mm) Footprint R/A P.C. Tail
Shell Plating	Nickel
Grounding Feature	#4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Grounding Feature
1	1	629-M09-240-GN6	629M	9	Plug (Pin)	Green	Gold Flash Plating	.370" (9.40mm) Footprint R/A P.C. Tail	Nickel	#4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole
