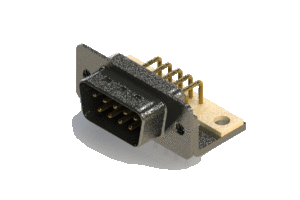

Right Angle D-Sub Connector, 629-M09-240-BN4

Manufacturer	EDAC Inc.
Description	The insulator is black and the shell is nickel plated. It is mounted via 4-40 UNC threaded inserts, has a stabilizing PCB and Ø.126" (Ø3.20mm) through holes.
Part Number	629-M09-240-BN4
Series	629M
Positions	9
Gender	Plug (Pin)

Color	Black
Contact Plating	Gold Flash Plating
Contact Code	.370" (9.40mm) Footprint R/A P.C. Tail
Shell Plating	Nickel
Grounding Feature	#4-40 UNC Insert + Stabilizer PCB + .126" (3.20mm) Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Color	Contact Plating	Contact Code	Shell Plating	Grounding Feature
1	1	629-M09-240-BN4	629M	9	Plug (Pin)	Black	Gold Flash Plating	.370" (9.40mm) Footprint R/A P.C. Tail	Nickel	#4-40 UNC Insert + Stabilizer PCB + .126" (3.20mm) Hole
