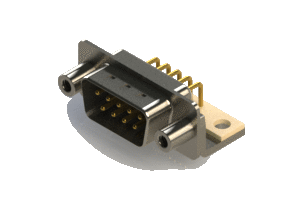

Right Angle D-Sub Connector, 621-M09-260-WN6

Manufacturer	EDAC Inc.
Description	The connector has a .283" (7.20mm) footprint, a white insulator and a nickel plated shell. It is mounted via 4-40 UNC threaded standoffs, has a stabilizing PCB and Ø.126" (Ø3.20mm) through holes.
Part Number	621-M09-260-WN6
Material	PA6T, UL 94V-0
Series	621M
Positions	9

Gender	Plug (Pin)
Color	White
Contact Plating	Gold Flash Plating
Contact Code	.283" (7.20mm) Footprint Right Angle PC Tail
Board Mounting Feature	4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Contact Plating	Contact Code	Board Mounting Feature
1	1	621-M09-260-WN6	PA6T, UL 94V-0	621M	9	Plug (Pin)	White	Gold Flash Plating	.283" (7.20mm) Footprint Right Angle PC Tail	4-40 UNC Standoff + Stabilizer PCB + .126" (3.20mm) Hole

Documentation

Datasheet

Contact the supplier

EDAC Inc.

Established in 1966, Edac became a world leader in the Card Edge and Rack & Panel industry. Many of our legacy designs are still in use today though over the years, we’ve expanded our line to include one of the widest ranges of interconnect solutions in the world.
