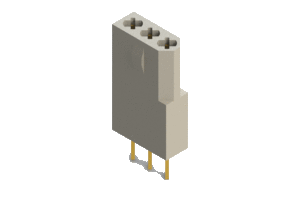

Rack & Panel Connector, 556-003-500-101

Manufacturer	EDAC Inc.
Description	Series 556 EDACON Connector with 3 Wire Hole type contacts. The tails are .110" x .024" (2.79mm x 0.61mm) thick and .245" (6.22mm) long in a Receptacle style connector. The insulator is White Nylon.
Part Number	556-003-500-101
Series	556
Positions	3

Gender	Receptacle
Contact Description	Wire Hole
Contact Tail Size	.110" x .024" (2.79mm x 0.61mm)
Contact Tail Length	.245" (6.22mm)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Description	Contact Tail Size	Contact Tail Length
1	1	556-003-500-101	556	3	Receptacle	Wire Hole	.110" x .024" (2.79mm x 0.61mm)	.245" (6.22mm)

Documentation

Datasheet
