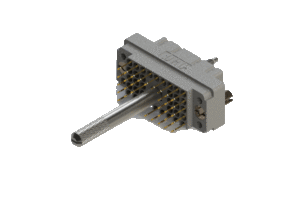

Rack & Panel Connector, 519-036-500-401

Manufacturer	EDAC Inc.
Description	Series 519 Rack & Panel Connector with 36 Wire Hole type contacts. The insulator is Grey PC with no cover and an actuating screw and polarizing hardware.
Part Number	519-036-500-401
Series	519
Positions	36
Gender	Receptacle

Contact Description	Wire Hole
Contact Tail Size	.110" x .024" (2.79mm x 0.61mm)
Contact Tail Length	.245" (6.22mm)
Cover Description	No Cover Assembled
Hardware description	Actuating Screw & Polarizing Hardware

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Positions	Gender	Contact Description	Contact Tail Size	Contact Tail Length	Cover Description	Hardware description
1	1	519-036-500-401	519	36	Receptacle	Wire Hole	.110" x .024" (2.79mm x 0.61mm)	.245" (6.22mm)	No Cover Assembled	Actuating Screw & Polarizing Hardware

Documentation

Datasheet
