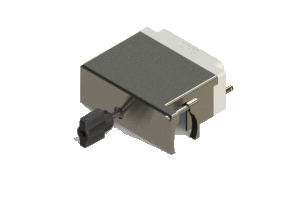

Rack & Panel Connector, 516-120-520-351

Manufacturer	EDAC Inc.
Description	516 Series Rack & Panel Connector with 120 P.C Tail type contacts. The tails are .025" x .024" (0.64mm x 0.61mm) thick and .215" (5.46mm) long in a Plug style connector. The insulator is Grey DAP with a side entry metal cover and an actuating screw.
Part Number	516-120-520-351
Material	Grey Diallyl Phthalate
Series	516
Positions	120

Gender	Plug
Contact Description	P.C. Tail
Contact Tail Size	.025" x .024" (0.64mm x 0.61mm)
Contact Tail Length	.215" (5.46mm)
Cover Description	Metal Cover, Side Entry
Hardware description	Actuating Screw & Polarizing Hardware

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Contact Description	Contact Tail Size	Contact Tail Length	Cover Description	Hardware description
1	1	516-120-520-351	Grey Diallyl Phthalate	516	120	Plug	P.C. Tail	.025" x .024" (0.64mm x 0.61mm)	.215" (5.46mm)	Metal Cover, Side Entry	Actuating Screw & Polarizing Hardware

Documentation

Datasheet
