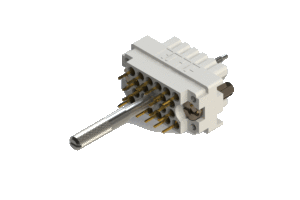

Rack & Panel Connector, 516-020-520-401

Manufacturer	EDAC Inc.
Description	516 Series Rack & Panel Connector with 20 P.C Tail type contacts. The tails are .025" x .024" (0.64mm x 0.61mm) thick and .215" (5.46mm) long in a Receptacle style connector. The insulator is Grey PC with no cover and an actuating screw.
Part Number	516-020-520-401
Material	Grey Polycarbonate
Series	516
Positions	20

Gender	Receptacle
Contact Description	P.C. Tail
Contact Tail Size	.025" x .024" (0.64mm x 0.61mm)
Contact Tail Length	.215" (5.46mm)
Cover Description	No Cover Assembly
Hardware description	Actuating Screw & Polarizing Hardware

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Contact Description	Contact Tail Size	Contact Tail Length	Cover Description	Hardware description
1	1	516-020-520-401	Grey Polycarbonate	516	20	Receptacle	P.C. Tail	.025" x .024" (0.64mm x 0.61mm)	.215" (5.46mm)	No Cover Assembly	Actuating Screw & Polarizing Hardware

Documentation

Datasheet
