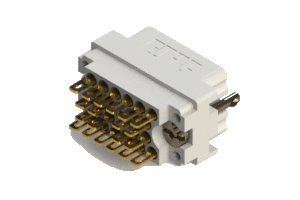

Rack & Panel Connector, 516-020-500-302

Manufacturer	EDAC Inc.
Description	516 Series Rack & Panel Connector with 20 Wire Hole type contacts. The tails are .110" x .024" (2.79mm x 0.61mm) thick and .245" (6.22mm) long in a Plug style connector. The insulator is Grey PC with no cover and a locknut and polarizing hardware.
Part Number	516-020-500-302
Material	Grey Polycarbonate
Series	516
Positions	20

Gender	Plug
Contact Description	Wire Hole
Contact Tail Size	.110" x .024" (2.79mm x 0.61mm)
Contact Tail Length	.245" (6.22mm)
Cover Description	No Cover Assembly
Hardware description	Locknut & Polarizing Hardware

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Contact Description	Contact Tail Size	Contact Tail Length	Cover Description	Hardware description
1	1	516-020-500-302	Grey Polycarbonate	516	20	Plug	Wire Hole	.110" x .024" (2.79mm x 0.61mm)	.245" (6.22mm)	No Cover Assembly	Locknut & Polarizing Hardware

Documentation

Datasheet
