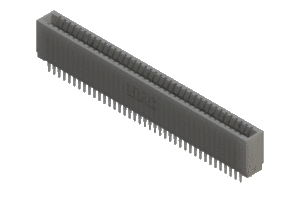

Press-fit Card Edge Connector, 745-078-520-201

Manufacturer	EDAC Inc.
Description	Series 745 Ultra-Mate card edge connector with 78 P.C. Tail type contacts that have a regular contact point and .175" (4.45mm) length tails, in a Double Row formation. The Insulator has .645" (16.38mm) full height ends.
Part Number	745-078-520-201
Material	UL 94V-0 Thermoplastic Polyester
Series	745
Positions	78
Gender	Female

Color	Black
Pitch	.100" (2.54mm)
Rows	Dual Row
Row Spacing	0.200" (5.08mm)
Contact Description	P.C. Tail
Contact Tail Length	.190" (4.83mm)
Contact Point	Regular Point

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Row Spacing	Contact Description	Contact Tail Length	Contact Point
1	1	745-078-520-201	UL 94V-0 Thermoplastic Polyester	745	78	Female	Black	.100" (2.54mm)	Dual Row	0.200" (5.08mm)	P.C. Tail	.190" (4.83mm)	Regular Point
