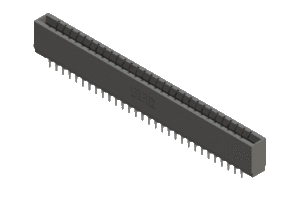

Press-fit Card Edge Connector, 737-060-520-201

Manufacturer	EDAC Inc.
Description	Series 737 Ultra-Mate card edge connector with 60 P.C. Tail type contacts that have a regular contact point and .175" (4.45mm) length tails, in a Double Row formation. The insulator has .645" (16.38mm) full height ends.
Part Number	737-060-520-201
Material	UL 94V-0 Thermoplastic Polyester
Series	737
Positions	60
Gender	Female
Color	Black

Pitch	.156" (3.96mm)
Rows	Dual Row
Insulator Option	.645" (16.38mm) Full Height Ends
Row Spacing	0.200" (5.08mm)
Contact Description	P.C. Tail
Contact Tail Length	.190" (4.83mm)
Contact Point	Regular Point

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Material	Series	Positions	Gender	Color	Pitch	Rows	Insulator Option	Row Spacing	Contact Description	Contact Tail Length	Contact Point
1	1	737-060-520-201	UL 94V-0 Thermoplastic Polyester	737	60	Female	Black	.156" (3.96mm)	Dual Row	.645" (16.38mm) Full Height Ends	0.200" (5.08mm)	P.C. Tail	.190" (4.83mm)	Regular Point

Documentation

Datasheet
