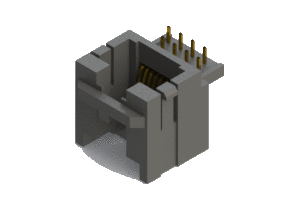

Modular Jack Connector, JPG018866P00035

Manufacturer	EDAC Inc.
Description	Housing JPG, single reversed vertical port. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, has no metal shielding and has panel stops.
Part Number	JPG018866P00035
Series	JPG
Mounting Option	Panel Stops/Ears
Contact Plating	30 Microinches of Gold
Housing Type	Code PG
No. of Ports	1 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Vertical Reversed
Housing Material	PBT
Left LED Color	No LED
Right LED Color	No LED
Shielding	No Shield
Port Type	Single Row (Vertical)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	JPG018866P00035	JPG	Panel Stops/Ears	30 Microinches of Gold	Code PG	1 Port	8P8C	Vertical Reversed	PBT	No LED	No LED	No Shield	Single Row (Vertical)

Documentation

Datasheet
