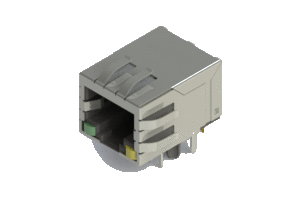

Modular Jack Connector, J9P018862P31202

Manufacturer	EDAC Inc.
Description	J9P housing, single right angle port. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, the left LED is green, the right LED is yellow, the tab is down, has metal shielding with EMI and has pegs.
Part Number	J9P018862P31202
Series	J9P
Mounting Option	Pegs (With LED)
Contact Plating	30 Microinches of Gold
Housing Type	Code 9P
No. of Ports	1 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	Green
Right LED Color	Yellow
Shielding	Metal Shield with EMI
Port Type	Single Row (Tab down)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J9P018862P31202	J9P	Pegs (With LED)	30 Microinches of Gold	Code 9P	1 Port	8P8C	Right Angle PCB	PBT	Green	Yellow	Metal Shield with EMI	Single Row (Tab down)

Documentation

Datasheet
