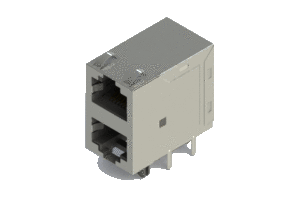

Modular Jack Connector, J96028862P00221

Manufacturer	EDAC Inc.
Description	Housing J96, two right angle ports. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, there is no left LED, there is no right LED, has two rows of ports, has metal shielding.
Part Number	J96028862P00221
Series	J96
Mounting Option	Board locks
Contact Plating	30 Microinches of Gold
Housing Type	Code 96
No. of Ports	2 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	No LED
Right LED Color	No LED
Shielding	Metal Shield with EMI
Port Type	Two Rows of Ports

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J96028862P00221	J96	Board locks	30 Microinches of Gold	Code 96	2 Port	8P8C	Right Angle PCB	PBT	No LED	No LED	Metal Shield with EMI	Two Rows of Ports
