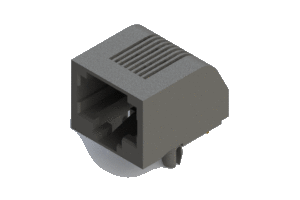

Modular Jack Connector, J79018862P00001

Manufacturer	EDAC Inc.
Description	Housing J79, single right angle port. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, has no metal shielding.
Part Number	J79018862P00001
Series	J79
Mounting Option	Board locks
Contact Plating	30 Microinches of Gold
Housing Type	Code 79
No. of Ports	1 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	No LED
Right LED Color	No LED
Shielding	No Shield
Port Type	Single Row (Tab down)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J79018862P00001	J79	Board locks	30 Microinches of Gold	Code 79	1 Port	8P8C	Right Angle PCB	PBT	No LED	No LED	No Shield	Single Row (Tab down)
