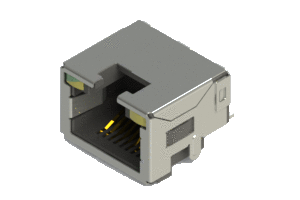

Modular Jack Connector, J6E018864L51110

Manufacturer	EDAC Inc.
Description	Housing J6E, single right angle port. 8P8C contact layout with 30µ" gold plating and surface mount tails. The housing material is LCP, the left LED is bi-color green/yellow, the right LED is yellow, the tab is up, has metal shielding.
Part Number	J6E018864L51110
Series	J6E
Mounting Option	Standard
Contact Plating	30 Microinches of Gold
Housing Type	Code 6E
No. of Ports	1 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle Surface Mount
Housing Material	LCP
Left LED Color	BI-Color (Green/Yellow)
Right LED Color	Yellow
Shielding	Metal Shield
Port Type	Single Row (Tap down)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J6E018864L51110	J6E	Standard	30 Microinches of Gold	Code 6E	1 Port	8P8C	Right Angle Surface Mount	LCP	BI-Color (Green/Yellow)	Yellow	Metal Shield	Single Row (Tap down)

Documentation

Datasheet

Contact the supplier

EDAC Inc.

Established in 1966, Edac became a world leader in the Card Edge and Rack & Panel industry. Many of our legacy designs are still in use today though over the years, we’ve expanded our line to include one of the widest ranges of interconnect solutions in the world.
