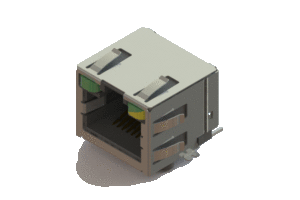

Modular Jack Connector, J6D018864L35212

Manufacturer	EDAC Inc.
Description	Housing J6D, single right angle port. 8P8C contact layout with 30µ" gold plating and surface mount tails. The housing material is LCP, the left LED is green, the right LED is bi-color green/yellow, the tab is up, has metal shielding.
Part Number	J6D018864L35212
Series	J6D
Mounting Option	Pegs
Contact Plating	30 Microinches of Gold
Housing Type	Code 6D
No. of Ports	1 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle Surface Mount
Housing Material	LCP
Left LED Color	Green
Right LED Color	BI-Color (Green/Yellow)
Shielding	Metal Shield with EMI
Port Type	Single Row (Tap up)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J6D018864L35212	J6D	Pegs	30 Microinches of Gold	Code 6D	1 Port	8P8C	Right Angle Surface Mount	LCP	Green	BI-Color (Green/Yellow)	Metal Shield with EMI	Single Row (Tap up)

Documentation

Datasheet
