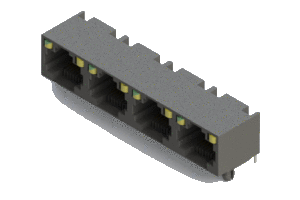

Modular Jack Connector, J67048862P51011

Manufacturer	EDAC Inc.
Description	J67 housing, four right angle ports. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, the left LED is bi-color green/yellow, the right LED is yellow, the tab is up, has no metal shielding and has boardlocks.
Part Number	J67048862P51011
Series	J67
Mounting Option	Board locks
Contact Plating	30 Microinches of Gold
Housing Type	Code 67
No. of Ports	4 Port

No. of Contacts per Port	8P8C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	BI-Color (Green/Yellow)
Right LED Color	Yellow
Shielding	No Shield
Port Type	Single Row (Tab up)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J67048862P51011	J67	Board locks	30 Microinches of Gold	Code 67	4 Port	8P8C	Right Angle PCB	PBT	BI-Color (Green/Yellow)	Yellow	No Shield	Single Row (Tab up)
