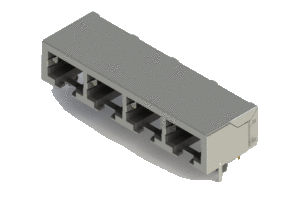

Modular Jack Connector, J60041162P00101

Manufacturer	EDAC Inc.
Description	Housing J60, four right angle ports. 10P10C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, the tab is down, has metal shielding.
Part Number	J60041162P00101
Series	J60
Mounting Option	Board locks
Contact Plating	30 Microinches of Gold
Housing Type	Code 60
No. of Ports	4 Port

No. of Contacts per Port	10P10C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	No LED
Right LED Color	No LED
Shielding	Metal Shield
Port Type	Single Row (Tab down)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J60041162P00101	J60	Board locks	30 Microinches of Gold	Code 60	4 Port	10P10C	Right Angle PCB	PBT	No LED	No LED	Metal Shield	Single Row (Tab down)

Documentation

Datasheet
