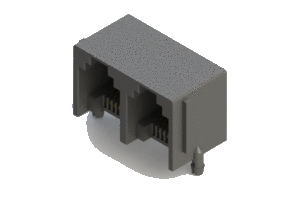

Modular Jack Connector, J53026662P00013

Manufacturer	EDAC Inc.
Description	Housing J53, two right angle ports. 6P6C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, the tab is up, has no metal shielding.
Part Number	J53026662P00013
Series	J53
Mounting Option	Panel Stops/Ears & Boardlocks
Contact Plating	30 Microinches of Gold
Housing Type	Code 53
No. of Ports	2 Port

No. of Contacts per Port	6P6C
Contact Tail Type	Right Angle PCB
Housing Material	PBT
Left LED Color	No LED
Right LED Color	No LED
Shielding	No Shield
Port Type	Single Row (Tap up)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J53026662P00013	J53	Panel Stops/Ears & Boardlocks	30 Microinches of Gold	Code 53	2 Port	6P6C	Right Angle PCB	PBT	No LED	No LED	No Shield	Single Row (Tap up)
