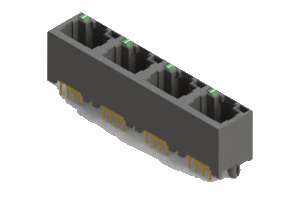

Modular Jack Connector, J2W048861P30031

Manufacturer	EDAC Inc.
Description	Housing J2W, four vertical ports. 8P8C contact layout with 30µ" gold plating and through hole tails. The housing material is PBT, the left LED is green, no right LED, has no metal shielding and has boardlocks.
Part Number	J2W048861P30031
Series	J2W
Mounting Option	Board Locks
Contact Plating	30 Microinches of Gold
Housing Type	Code 2W
No. of Ports	4 Ports

No. of Contacts per Port	8P8C
Contact Tail Type	Vertical PCB
Housing Material	PBT
Left LED Color	Green
Right LED Color	No LED
Shielding	No Shield
Port Type	Single Row (Vertical)

CAD models

Request for quotation

Product selection

Index	Selector	Part Number	Series	Mounting Option	Contact Plating	Housing Type	No. of Ports	No. of Contacts per Port	Contact Tail Type	Housing Material	Left LED Color	Right LED Color	Shielding	Port Type
1	1	J2W048861P30031	J2W	Board Locks	30 Microinches of Gold	Code 2W	4 Ports	8P8C	Vertical PCB	PBT	Green	No LED	No Shield	Single Row (Vertical)

Documentation

Datasheet
